Carton Box Two Colors Printing Slotting Die Cutting Machine Automatic 150pcs/Min

Brand Name : Hh

Model Number : 1400*2600mm

Certification : CE ISO9001

Place of Origin : CHINA

MOQ : 1

Price : negotiated

Payment Terms : T/T, L/C

Supply Ability : 5 set every month

Delivery Time : 30-60 days

Packaging Details : plastic

name : CAutomatic Flexo Carton Box Two Colors Printer Slotter Rotary Die Cutter

warranty : 1 year

speed : 150pcs/min

function : making carton box

Color : one two three four five

cardboard thickness : 2-18mm

Core Components : Motor, PLC, Engine

Printing material : Corrugated Paperboard

Key Selling Points : High-accuracy

Application : Corrugated Carton Box

Contact Now

Product Description

YKM-Automatic flexo printing slotting rotary die cutting with vibrating stacker machine

1,Operation-control switch(PLC computer control)

2, it’s control iak roller automatic up and down, printing plate after wash clean, automatic Memory reset, Personalized alignment cardboard , quota to complete automatic standby , and other functions

3. The main transmission adopts high quality steel, after quenching treatment, finish rolling gear processing, can achieve the four level of accuracy of high hardness, high precision gear.

4. Key free space connector, eliminate traditional connection, maintain long-term accurate color printing, the transmission mechanism adopts spray lubrication, automatic lubrication system.

5. Between the units using cylinder lock, and the whole machine has a strong lock to the self - locking mechanism to ensure the stability of the unit.

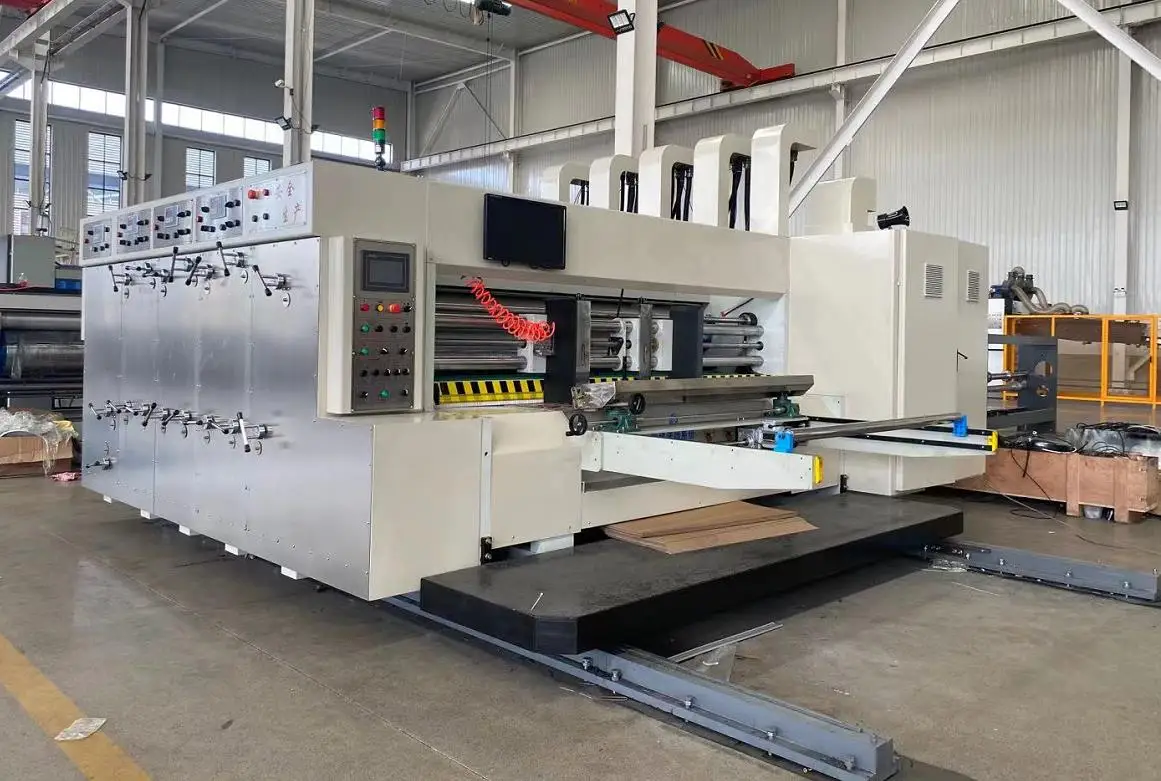

Carton Box Two Colors Printing Slotting Die Cutting Machine Automatic 150pcs/Min

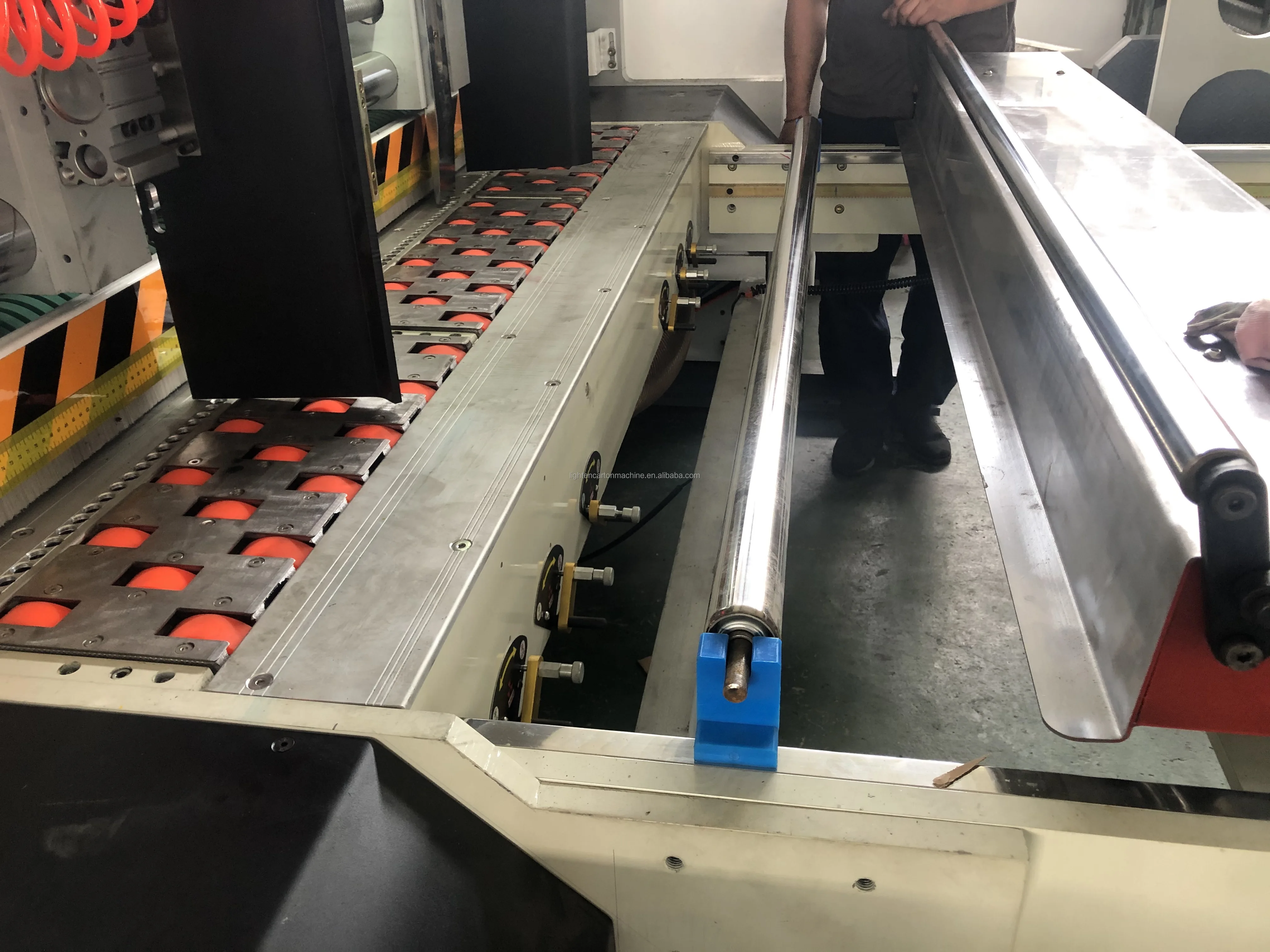

Lead edge feeder unit

1. Adopt vacuum absorption lead edge feeder, high pressure centrifugal fan auxiliary feeding paper, wind adjustable.

2. adopt unique quick change type half wheel mechanism to ensure the consistency of feeding position, avoid feeding wheel circle wear is not the same, and replacement is very convenient.

Printing unit

1. The ink supply device is provided with an ink penetration leather pad and a sputtering ink return mechanism,,to prevent ink outside impact printing quality.

2. With a digital display of the function of the planetary gear type accompanied by the adjustment of the plate is electric phase adjustment.

3. Metal anilox roller with rubber roller.

4. Optional: Ceramic anilox roller with doctor blade

Slotting unit

1. The roller with the latest design precompression is adopted to protect the paperboard from damage.

2. Equipped with the button left and right to synchronize the electric axial movement of the motor, make the upper and lower creasing line move together, the upper and lower slotting knife, make the synchronous adjustment, and electrical adjusting box height function.

3. With the digital display function, the planetary gear type phase adjustment mechanism is used to carry out the electric adjustment of the slotting phase and the box height.

4. new desigh rubber creasing wheel. Avoid cardboard damage

Rotary die cutting unit

1. Die - cutting roller with planetary structure, high precision, large bearing capacity, stop, operation can be electric digital 360 - degree adjustment.

2. The roller is hard chrome plated steel surface quality, and balance, increase its running stability and reliability.

3. Optional: with slotting knife attachment

Vibrating stacker

1. Answer the paper arm The machine has manual and automatic operation.

2. Platform lifting Strong chain drive. The stack height is 1600mm. Platform lift drive motor with brake function, the platform can maintain a fixed position, will not decline. 3. Paper baffle. The pressure action of the paper tray, when the board is piled up to the predetermined height, the paper tray is automatically extended to hold the cardboard. The rear baffle position is manually adjusted. Plane wrinkle belts to prevent the cardboard from slipping.

1. The main wall body: Japan mitsubishi five-sided machining center processing.2. Transmission gear: High precision grinding teeth.
3. Printing roller: 45# steel rolling welding, computer dynamic balance correction, grinding and hard chromium plating.
4. anilox roller: Dynamic balance correction
5. Electrical part: Siemense, Scheigher, Delta, Fatek,
